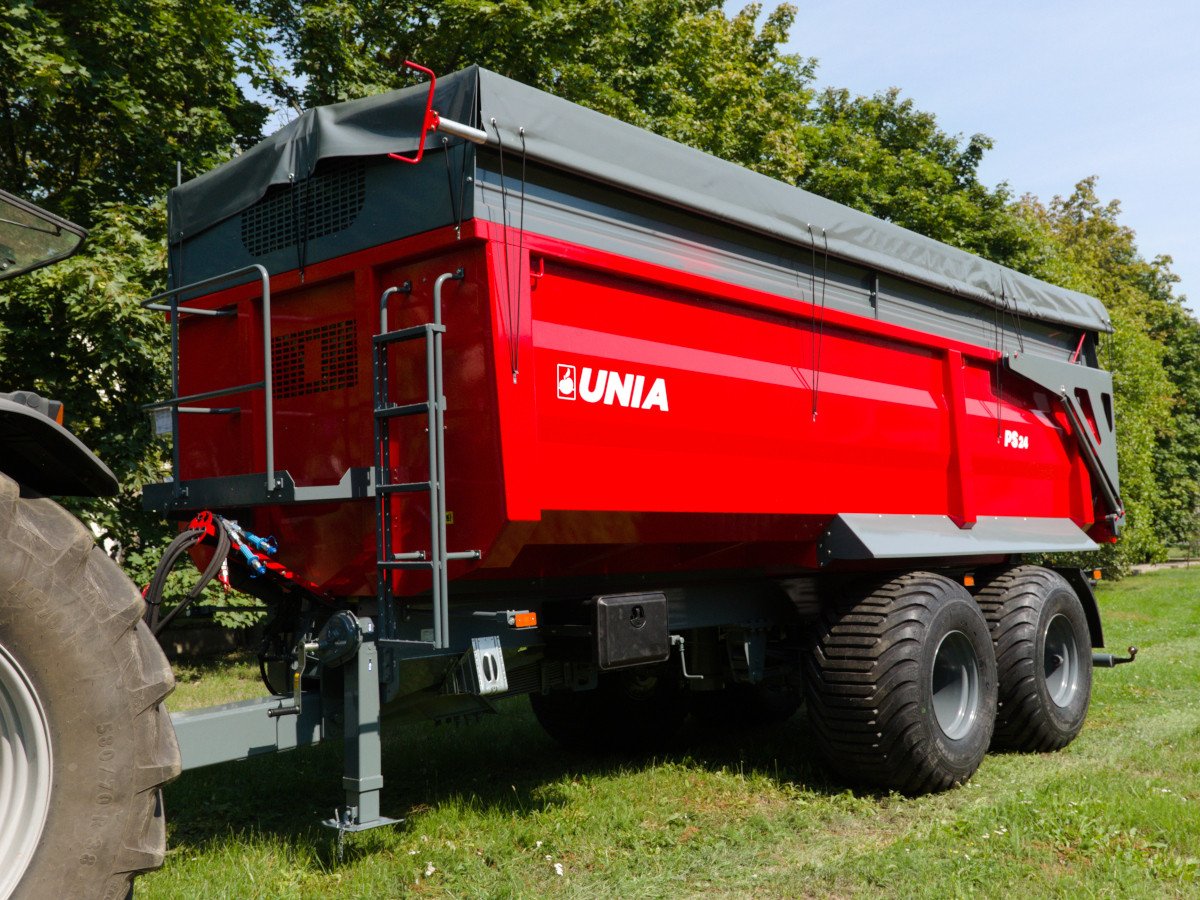

Machine description
Unitised body trailers allow efficient transport of agricultural produce and other materials, and the construction of their hopper provides exceptional strength and tightness. The "W" version with a lifted hopper allows laying of high heaps of, for example, beets, during unloading.
Standard equipment
| PS |
|
Accessories at extra charge
| PS |
|
Construction
 |
Compact design of the hopper enables the transport of heavy materials with high surface pressure |
|
| Sprung drawbar Trailers are standard equipped with a sprung drawbar, which absorbs all vibrations. |
 |
|
 |
Tandem chassis provides optimal distribution of pressure on the surface, protecting the soil structure |
|
| Low loading height one of the trailer's applications is working with an elevator potato digger - that's why the loading height does not exceed 3 m |
 |
|
 |
Tight hopper allows the transport of even the finest and semi-liquid material |
|
| Clamps Solid and tight closing of the rear wall by clamping hooks, which automatically block the rear wall after its lowering. |
 |
|
 |
Hydraulically lifted wall allows efficient and quick unloading of transported materials |
|
| Chute in the rear wall of the hopper allows for stream discharge of loose materials |
 |
|
 |
Flexible tarpaulin enabling the rear wall to be lifted without the need to roll it up |
Technical specifications
| PS | 20 / 20 W |
24 | |
| Total weight [t] | 20 | 22 | |
| Technical capacity [t] | 14 | 16 | |
| Trailer body capacity [m3] | 16,5 | 18 | |
| Body capacity with 500 mm attachment [m3] | 23 | 27 | |
| Speed approval [km/h] | (25) 40 | (25) 40 | |
| Axle load [kg] | 2x9000 | 2x9000 | |
| Max drawbar load on hitch [t] | 2+3 | 2+3 | |
| Cargo body dimensions [m] length / width / height |
6,00 / 2,20 / 1,25 | 6,50 / 2,20 / 2,25 | |
| Total dimensions [m] length / width / height |
7,80 / 2,55 / 2,70 | 8,50 / 2,55 / 3,52 | |
| Weight [kg] | 5545 / 5645 | 6245 | |
| Tyres | 550/60-22,5 | 550/60-22,5 | |
